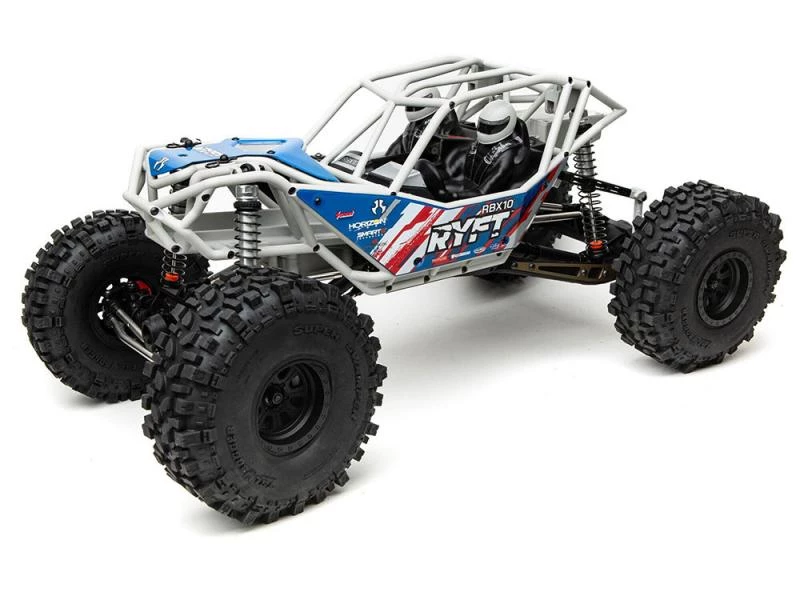

Axial 1/10 RBX10 Ryft 4WD Rock Bouncer Kit – Grey

Like real rock bouncers, the RBX10 Ryft 1/10 scale kit is designed to tackle challenging terrain at high speeds. With a 4WD transmission, robust tube chassis, 4-link suspension and more, this Axial vehicle handles lots of abuse and loads of power.

Axial® introduces another first with the 1/10 scale RBX10™ Ryft™ 4WD, a kit that allows intermediate level RC drivers to experience the thrills of rock bouncer off-road action. Full-size rock bouncers refuse to stop — or even back down on the throttle — when facing steep climbs and massive rocks. So does the RBX10™ Ryft™ 4WD. This ground-up new Axial® vehicle handles lots of abuse and loads of power!

The RBX10™ Ryft™ 4WD’s robust, custom tube chassis is engineered from a high-strength composite plastic that withstands the hard knocks of RC off-roading — even while moving at high speeds over difficult off-road terrain. Both the front and rear axles boast a durable one-piece, moulded plastic, solid axle design and realistic metal differential covers. Officially licensed Interco TSL Super Swamper Bogger tyres on Raceline Monster wheels do their part to tame wild tracks, aided by a 4-link suspension and adjustable, long travel front and rear oil shocks. These features, plus a full-time 4WD transmission, make the RBX10™ Ryft™ an exciting vehicle to take on tough challenges at full throttle.

The Ryft™ kit comes with a clear body for finishing in your favorite colors, plus decals and realistic interior details. Many option parts are also included: spool/locker, rear aluminium link plates, rear sway bar, and parts for a 2-speed or single-speed transmission setup (servo not included). Build and finish the kit as you wish and complete it with your choice of radio system, motor, ESC and battery. Then, enjoy rock bouncing off-road driving over trails, dirt, gravel, rocks and more, with an RC vehicle that’s engineered to take it — the Axial® RBX10™ Ryft™ 4WD.

Option Parts Included
The RBX10™ Ryft™ 4WD kit comes with parts needed to build it with a single or two-speed transmission (servo not included), as well as optional rear sway-bar, rear aluminium link plates, and spool/locker.

Features

• Strong tube chassis design
• Full-time 4WD transmission
• Solid front and rear axles with realistic metal differential covers
• Hardened steel universal axle set
• Tough, large diameter WB11 Wildboar™ driveshafts
• 4-Link suspension system
• Long travel front and rear oil-filled shocks
• Officially licensed Raceline Monster wheels
• Simulated disc brakes for extra realism
• Interco Super Swamper TSL (Three Stage Lug) Bogger tyres
• Kit also includes option parts

In The Box

• (1) Axial RBX10 Ryft 1/10 4WD Kit
• (1) Optional 2-Speed Set
• (1) Optional Sway Bar Set
• (1) Optional Differential Spool
• (1) Optional Lower Link Plate Rear
• (1) Product Manual

Needed to Complete

• (1) Radio System
• (1) Steering Servo
• (1) ESC and Motor
• (1) LiPo Battery and Compatible Charger
• (1) Micro Metal Gear Servo (for 2-speed configuration) – SX107 Recommended

Spec

• Ball Bearings: Full set
• Bushing Material: Metal
• Chassis: Injection molded plastic
• Completion Level: Kit
• Differential: Bevel gear
• Drivetrain: 4WD
• Drive Type: Forward/Brake/Reverse
• Front Track: 12.75″ (323.8mm)
• Gear Pitch: MOD 1
• Ground Clearance: 3.25″ (82.5mm)
• Pinion: 17T
• Product Height: 8.75″ (222 mm)
• Product Length: 21.5″ (546 mm)
• Product Weight: 7.26lbs (3.29kg)
• Product Width: 12.75″ (324 mm)
• Radio Sold Separately
• Shock Type: Oil-filled, Front 5.11 in (130mm), Rear 5.70 in (145mm
• Spur Gear: 53T
• Suspension: Solid axle 4-link
• Tire Tread: Interco TSL Bogger
• Vehicle Type: Rock Racer
• Wheelbase: 15.25″ (387 mm)
• Wheel Type: Raceline Monster
• Wheel Width: 1.6 in (40.64mm)

Specification

Manufacturer	Axial
Part Number	C-AXI03009
EAN	0605482729229
Drive	4WD
Surface Type	Off-Road
Assembly Type	Un-Assembled (Kit)
Scale	1:10
Vehicle	Rock Racer
Skill Level	Skill Level 4
Motor Type	No Motor Supplied
